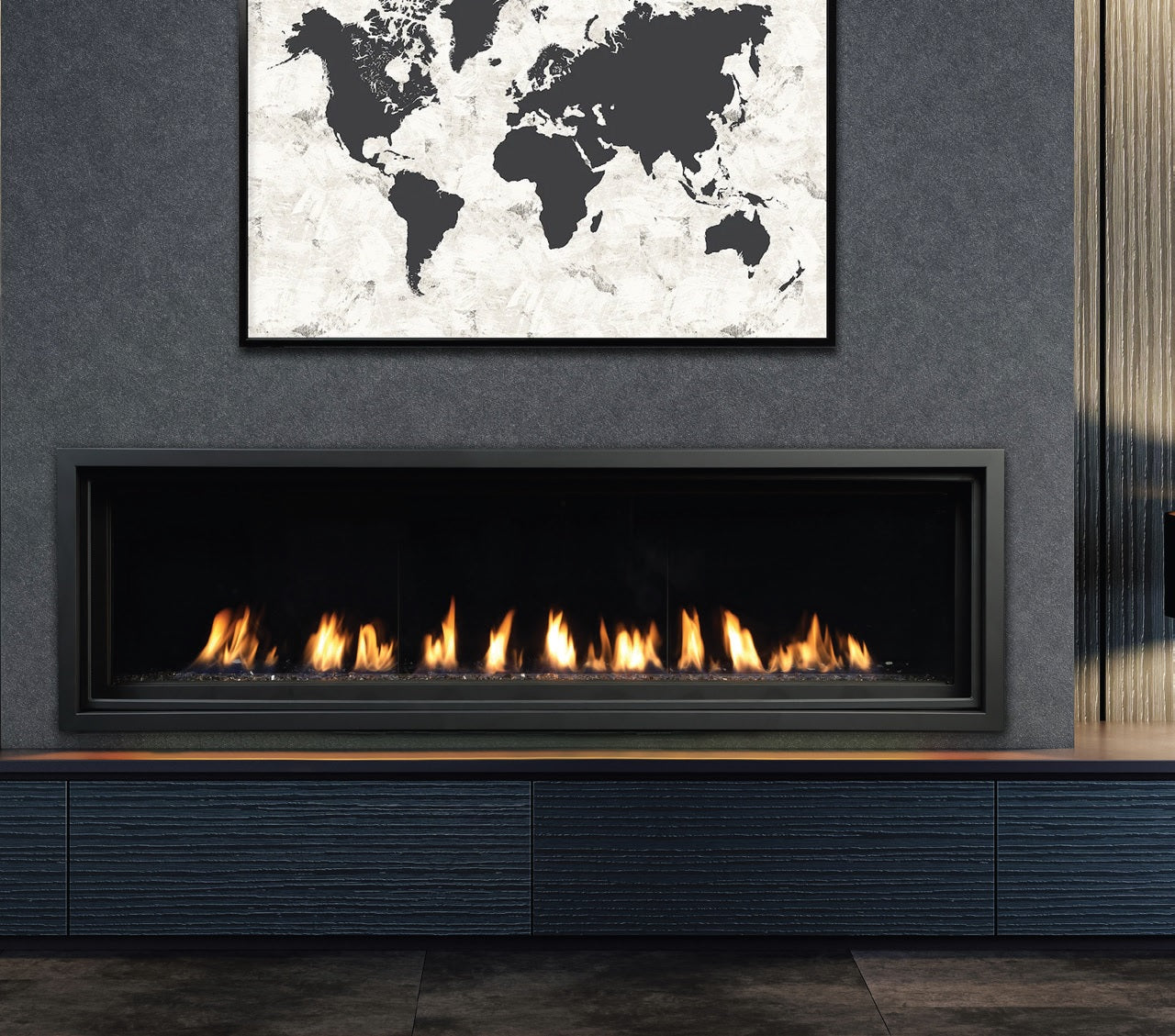

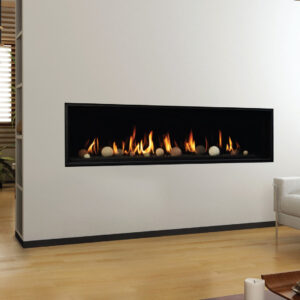

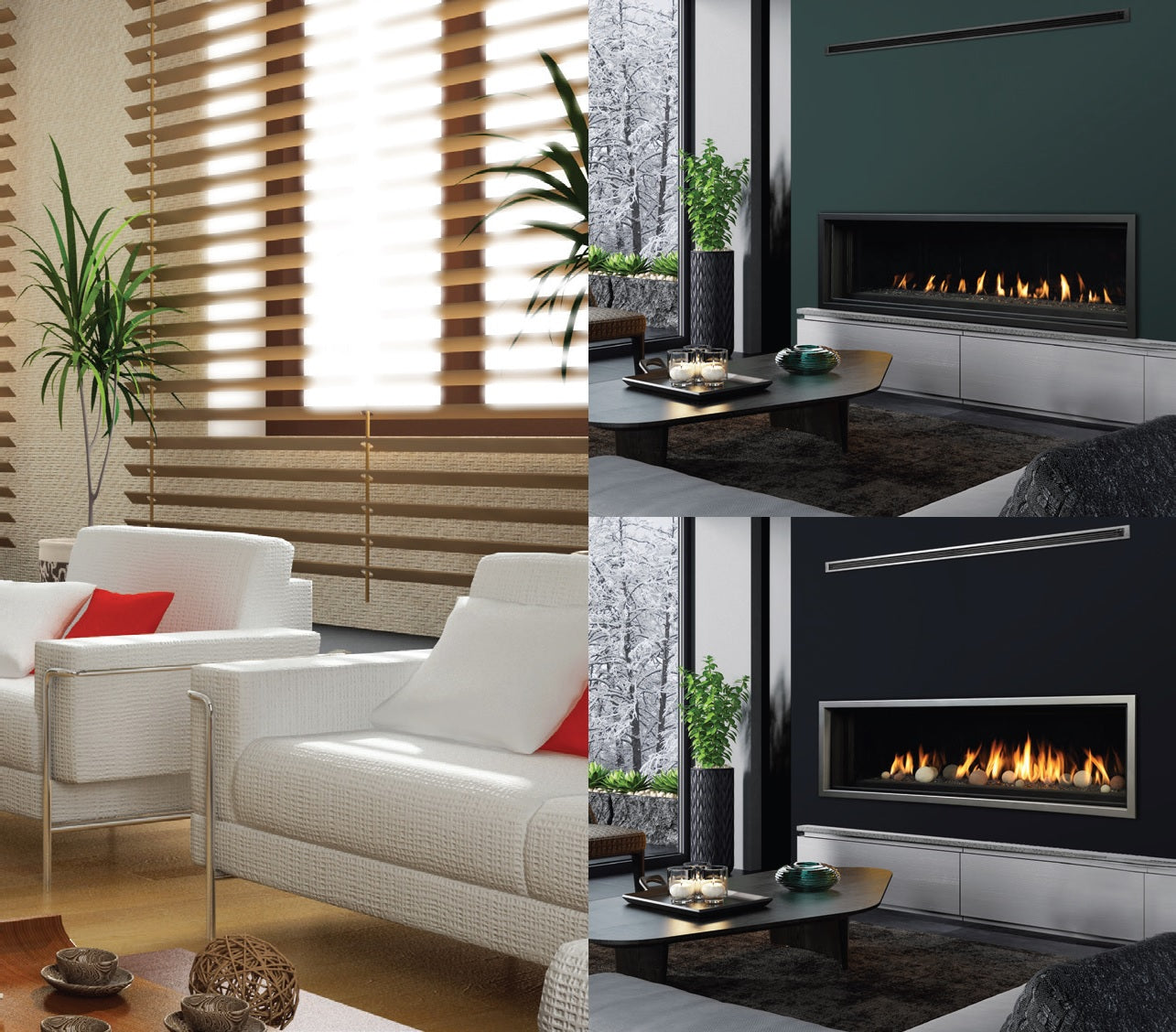

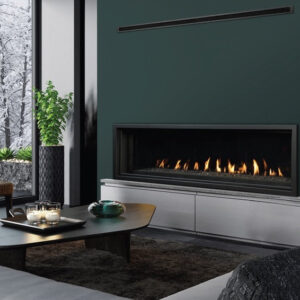

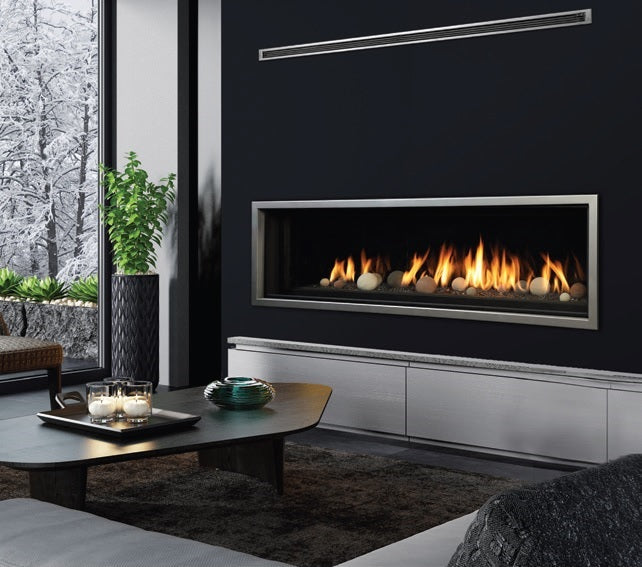

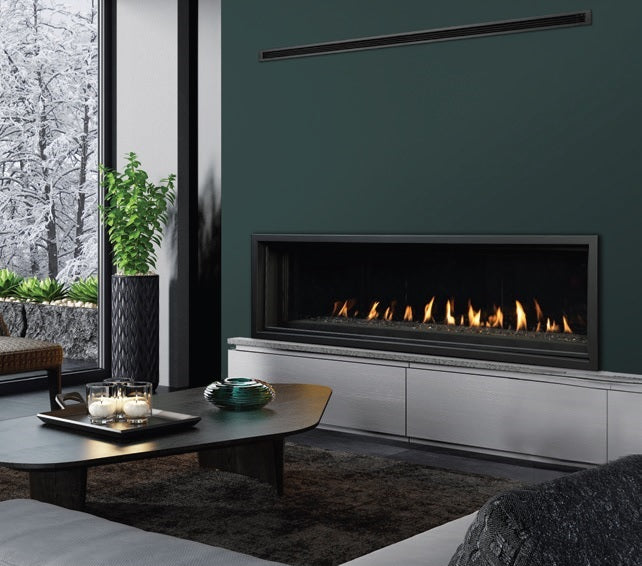

Kingsman ZCVRB72 72″ Direct Vent Zero Clearance Natural Gas Fireplace

Sale

The Kingsman ZCVRB72 72″ Direct Vent Zero Clearance Natural Gas Fireplace brings an elegant and powerful heating solution to any living space. Designed with a sleek tempered glass front and a built-in safety screen barrier, this fireplace enhances both safety and aesthetics. The inclusion of decorative bronze glass further elevates the ambiance, creating a warm and inviting atmosphere. Whether it’s installed in a mobile home, bedroom, or bed sitting room, this unit is fully approved for safe use, making it a versatile choice for homeowners seeking comfort and efficiency.

Equipped with a Hi/Low Millivolt or IPI valve system, the Kingsman ZCVRB72 ensures reliable operation even during power failures, offering uninterrupted warmth when it’s needed most. With a maximum heat output of 50,000 BTU and an efficient intermittent pilot gas control, this fireplace provides customizable comfort while maintaining energy efficiency. The top flue design, along with flexible venting options including a 5″ flex or 8″ hard pipe, allows for easy installation in various home layouts, ensuring adaptability to different spaces.

Certified as a heater, the Kingsman ZCVRB72 is engineered for both performance and durability. Its natural gas fuel source ensures a consistent and cost-effective heating solution, while the impressive FE rating of 53.14% to 53.64% demonstrates its commitment to efficiency. Whether enhancing a modern home or upgrading a traditional space, this direct vent gas fireplace combines style, warmth, and convenience, making it a top choice for those looking to elevate their indoor living experience.

Vented Chase Option:

The chase of the appliance may be vented to achieve Cool Touch Walls or reduced Mantel Clearances. The following options are available to vent the chase:

The top of the chase can be left open.
A grill can be installed on the front of the chase.
If the chase bumps out into the room, side grills can be installed on each side of the chase.

Minimum enclosure height for a vented chase is measured from bottom of fireplace, ventilation of minimum free air opening is required. Choose between our Enclosure Grills (Front or Sides) or Custom Grill (if custom grills are used the louvers cannot slope) or adequate ventilation opening as stated in the manual. Grill or opening must meet minimum (as specified in the installation manual) of chase top/ceiling.

SPECIFICATIONS WITH OPENINGS (MIN. NO GRILLS)

ZCVRB47 – 105 sq/in.
ZCVRB60 – 200 sq/in.
ZCVRB72 – 285 sq/in.

Min. Enclosure Height
ZCVRB47 – 70”
ZCVRB60 – 76”
ZCVRB72 – 79”

Min. Opening Below Ceiling
ZCVRB47 – 1-1/4”
ZCVRB60 – 1-7/8”
ZCVRB72 – 2-3/8”

SPECIFICATIONS WITH GRILLS (MIN. AIR FREE OPENINGS)

ZCVRB47 – 105 sq/in.
ZCVRB60 – 220 sq/in.
ZCVRB72 – 285 sq/in.

Min. Enclosure Height
ZCVRB47 – 70”
ZCVRB60 – 76”
ZCVRB60 – 79”

Grill Opening (Max. Distance from top of Ceiling)
ZCVRB47 – 2”
ZCVRB60 – 3/4”
ZCVRB60 – 3/4”

Included:

Not Included (Sold Separately):

Features:

Tempered Glass
Safety Screen Barrier
Decorative Bronze Glass
Mobile Home, Bedroom and Bed Sitting Room approved
Hi/Low Millivolt or IPI valve system will operate during power failures

Specifications

Model	ZCVRB72NE
Fuel	Natural Gas
Gas Control	Intermittent Pilot
Flue	Top
Input Max.	50,000 BTU
Input Min.	34,000 BTU
FE (p.4.1-02)%	53.14% / 53.64%
Venting	5″ Flex or 8″ Hard Pipe
Glass Type	Tempered
Certification	Heater

Gas Supply Pressure

Minimum	5.5″
Normal	7″
Maximum	9″
Manifold Pressure High	3.5 IN. W.C./.87 KPa
Manifold Pressure Low	1.6 IN. W.C./.40 KPa

Dimensions:

Actual Width (CVCK)	79″
Actual Height (CVCK)	40″
Actual Depth (CVCK)	19″

Warranty:

This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada.
The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.

Document & Files:

About the Manufacturer:

Kingsman established its own distribution network in 1996, but the roots of the company go back much further than that. Company founder Russell Reyher made his first wood-burning gas stove in 1976 followed by an innovative line of gas fireplaces and freestanding stoves in 1983. Innovation is constantly at the forefront of Kingsman’s operations with every aspect of every gas appliance in constant review for better performance, appearance, and value, and every product is fully certified for use in Canada and the United States. Located in the heart of North America, Kingsman prides itself on providing high quality at a fair price.
