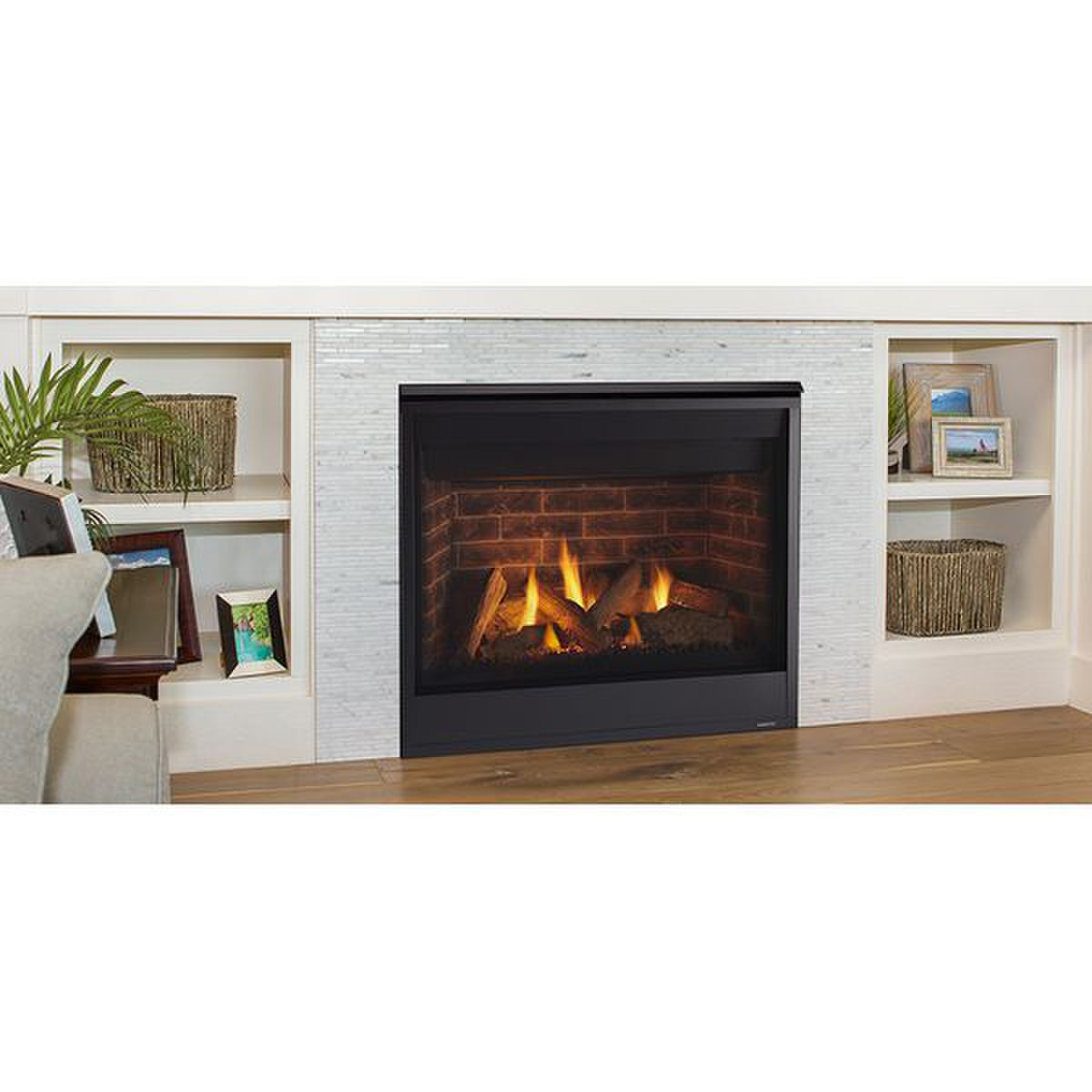

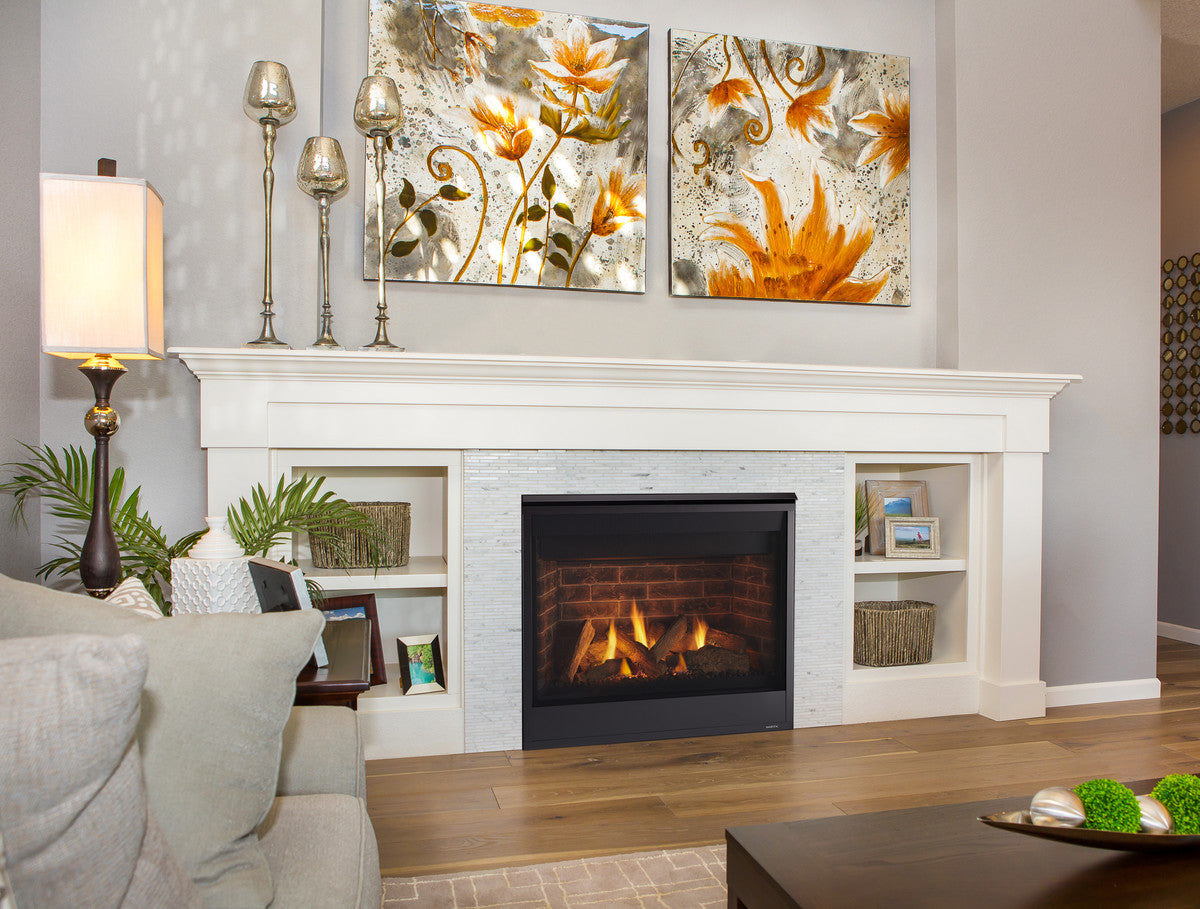

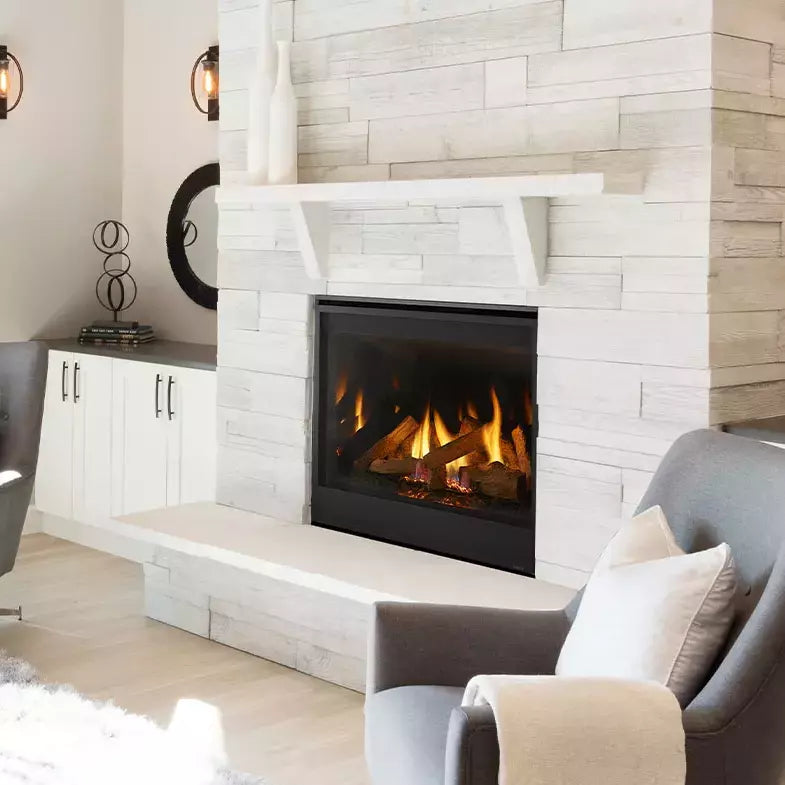

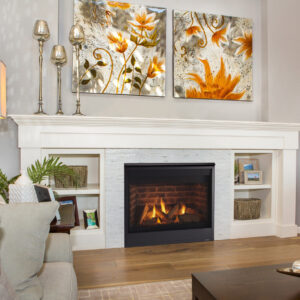

Majestic Quartz Series Gas Fireplace
This Majestic Quartz high-efficiency 36 inch direct vent gas fireplace with intellifire touch ignition system enhances both functionality and aesthetics. It features the IntelliFire Touch Ignition System, which ensures a seamless, user-friendly experience. With a heating capacity of 1,100 square feet, it will keep your home toasty warm. This modern direct vent fireplace’s sleek design, full firescreen front, and ceramic fiber logs create an ambiance of real fire in any room.
This Majestic Quartz 36-inch gas fireplace offers innovative venting options for both top and rear venting. It comes with eight ceramic fiber logs, tempered glass, a 12-foot control wire, and a full firescreen front and hood. With a BTU output ranging from 17,000 to 24,000 for natural gas and 16,000 to 20,500 for liquid propane, the Majestic Quartz series gas fireplace can be used for a wide range of heating needs.
It can be converted into a contemporary style with the addition of two media color bags, and it is powered by a battery backup during power outages. The Quartz series direct vent gas fireplace is designed with efficiency and safety in mind. It has an AFUE efficiency rating of 53% for natural gas and 54.9% for liquid propane, while Canada EnerGuide has ratings of 50.7% and 51.1%. The unit is designed for use with several venting kits to ensure safe and efficient operation, depending on the configuration of the venting pipes.
Includes:
- 17,000 – 24,000 Btu/Hour Input (NG)
- 16,000 – 20,500 Btu/Hour Input (LP)
- 5″ x 8″ rear vent collar
- 4″ x 6 5/8″ top vent collar
- 8 ceramic fiber logs
- Full firescreen front and hood
- Tempered glass
- Glowing embers
- Battery backup
- 12′ control wire

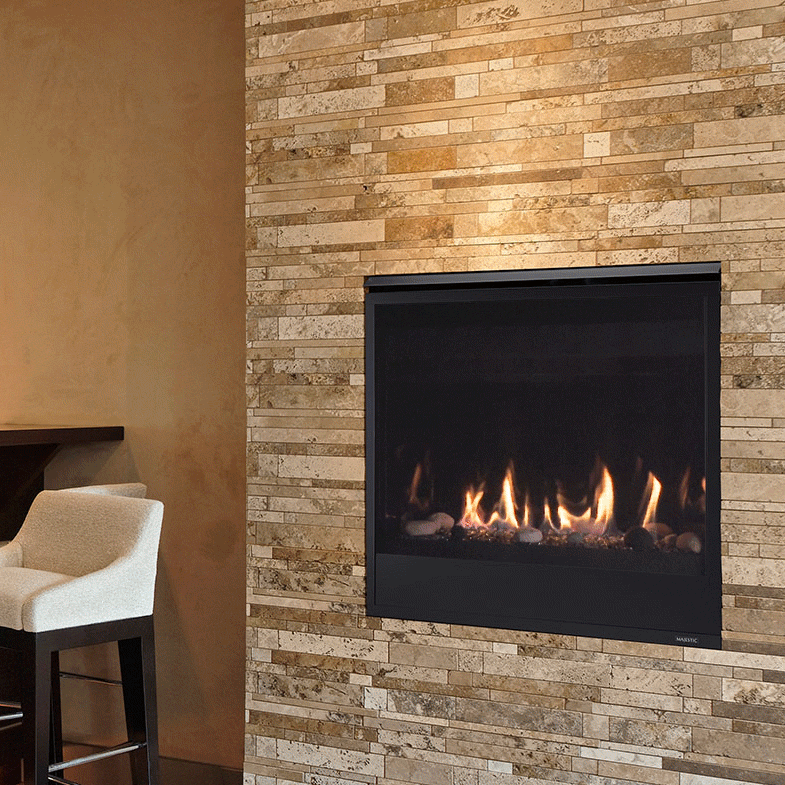

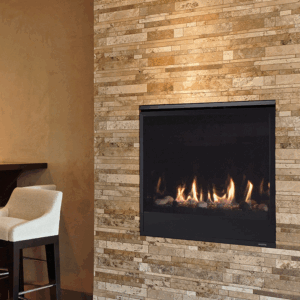

- Convertible to contemporary
- IntelliFire ignition
- Note: To change contemporary media color requires 2 bags
Venting Notes:
- Requires SLP series or SLP-Flex series pipe when venting off top of the unit. See Venting section.
- Requires DVP series pipe when venting off rear of the unit. See Venting section.
- Approved for use with PVLP-SLP, PVI-SLP-B, and PVV-SLP with PV-IPI-CK kit, power vent wire harness, and RC100, 200, or 300 control (order separately). See venting section of manual.
Specifications:
| Model | QUARTZ36IFTN(L) |
| Fuel Type | Natural Gas/ Liquid Propane |
| Viewing Area | 32-1/16″ x 21-1/2″ |
| Heating Capacity² | Up to 1,100 sq.ft. |
| BTU/hr Input | 24,000 (NG); 20,500 (LP) |
| Appliance Width | 41″ |
| Appliance Height | 37-7/8″ |
| Appliance Depth¹ | 16-5/16″ |
| Appliance Rear Width | 30-3/4″ |
| Framing Height | 38-1/4″ |
| Framing Depth | 16-1/4″ |
| Framing Front Width | 42″ |
| Framing Back Width | 42″ |
Efficiency
| AFUE |
53.0 (NG) / 54.9% (LP) |
| Canada EnerGuide | 50.7% (NG) / 51.1% (LP) |
¹ Appliance Depth includes the entire unit including the depth of the firebox and extension onto hearth.
² This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
Downloads:
- Quartz Series Brochure
- Quartz Series Installation Manual
- Quartz Series Owner’s Manual
- Quartz 36 Service Parts
- Quartz 36 Architect Guide
- Installation Manual – GFK-160C
- Installation Manual – IntelliFire Touch IFT-ACM
- Installation Manual – IntelliFire Touch IFT-RC150
- Installation Manual – IntelliFire Touch IFT-RC400 / IFT-ACM
- IntelliFire App Quick Start Guide
- IntelliFire App User Guide
- IntelliFire Touch IFT-RC150 User Guide
- IntelliFire Touch IFT-RC400 – User Guide
- Installation Instructions – HEAT-OUT-GAS
- Installation Instructions – HEAT-ZONE-GAS
- Installation Instructions – PVLP-SLP Power Vent Low Profile
- Installation Instructions – WiFi Module
About The Manufacturer:

Since 1894, Majestic has been dedicated to keeping families warm. Originally a manufacturer of cast iron furnaces and coal chutes, Majestic created its first factory built fireplace in the 1930’s and never looked back. Since then, Majestic has been producing wood and gas fireplaces known for outstanding durability, superior quality and stunning good looks. Traditional to contemporary. Indoor or outdoor. Wood, gas or electric. With a wide range of eye-catching styles, convenient sizes and trending trims, Majestic products are designed be the beautiful heart of your home.
