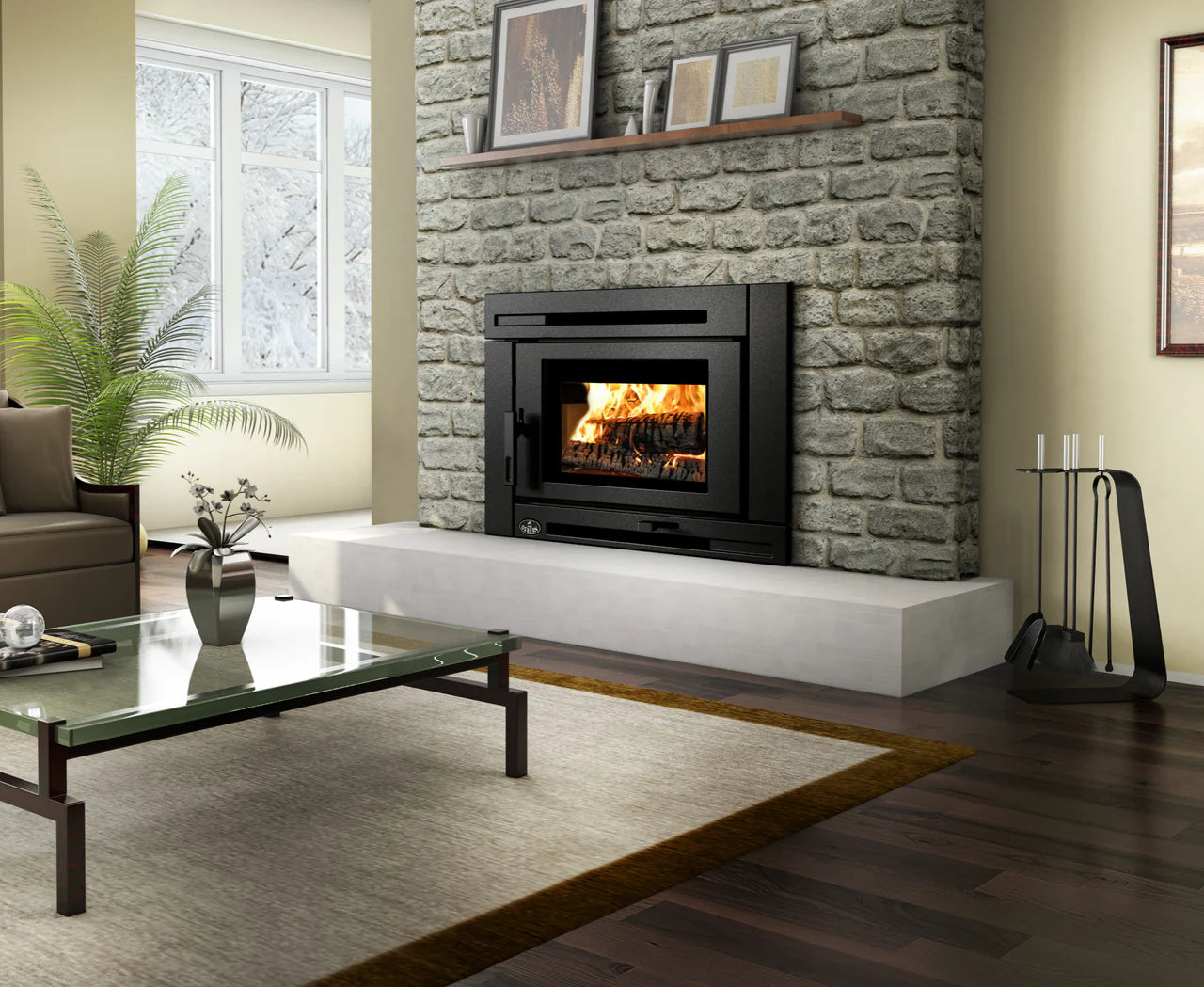

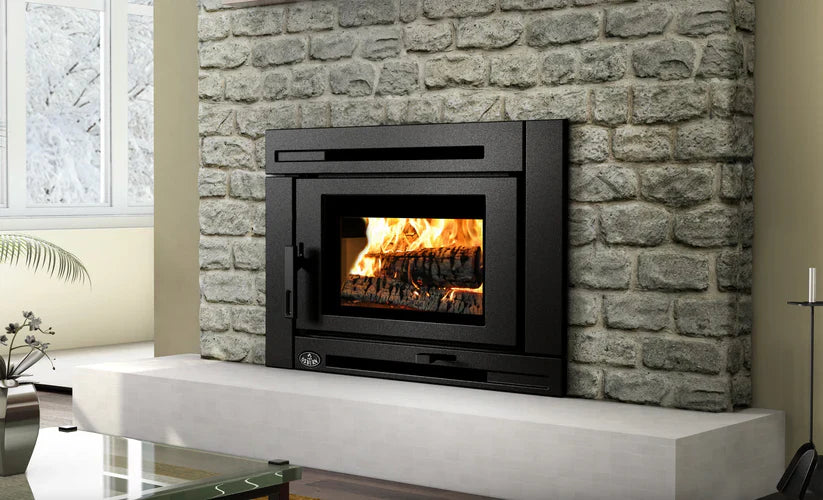

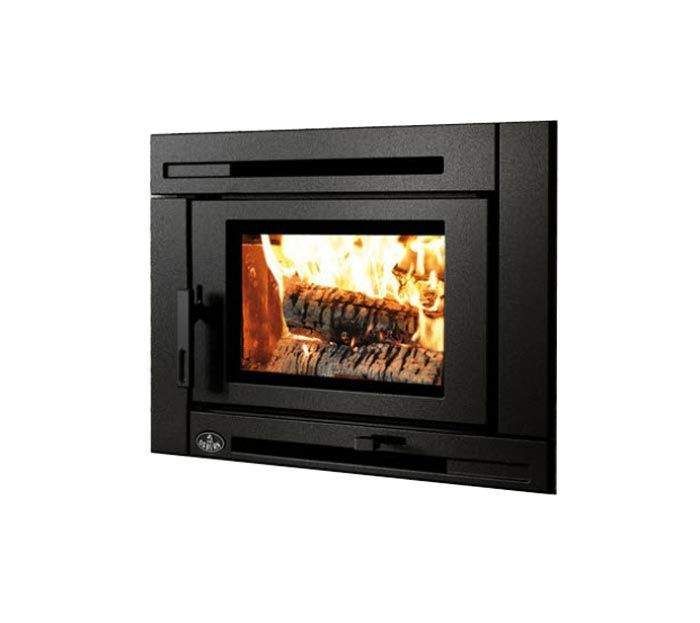

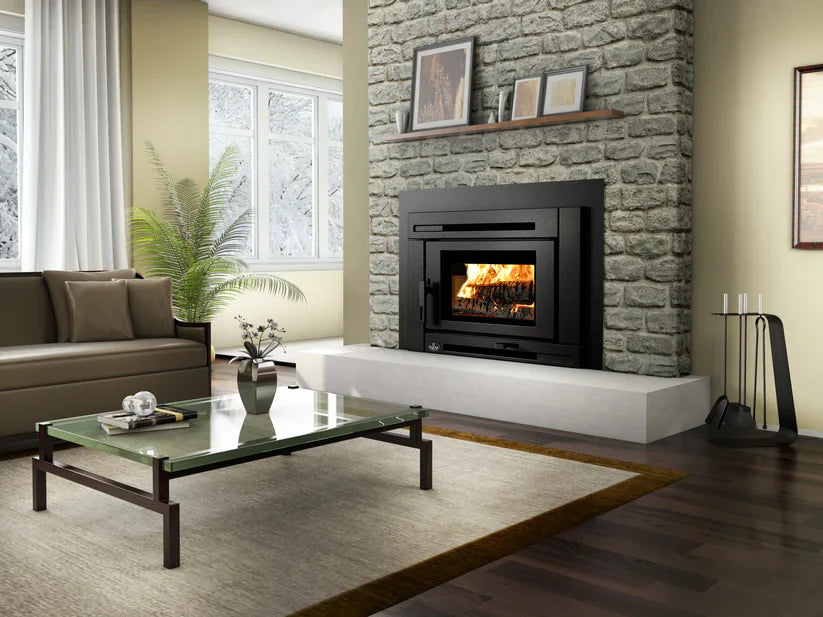

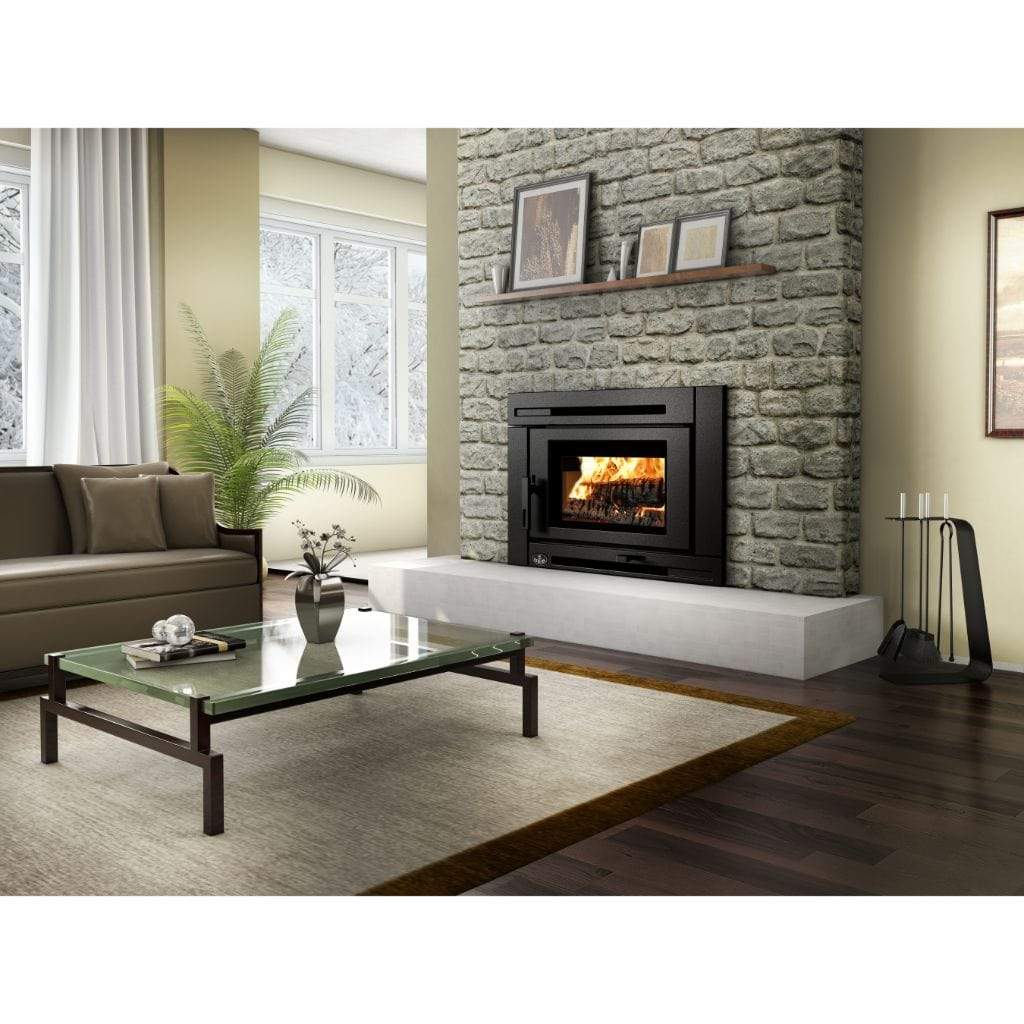

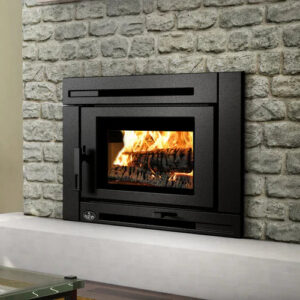

Elevate your home heating experience with the Osburn Matrix 2000 Wood Insert. As the days grow colder, there’s no better time to embrace the warmth and allure of a crackling fire. This wood insert seamlessly blends classic design with modern efficiency, bringing you a source of heat that not only warms your space but also creates a cozy ambiance that invites you to relax and unwind.
Crafted with precision, the Osburn Matrix 2000 is a symbol of superior craftsmanship and engineering excellence. Its sleek lines and durable construction ensure that it doesn’t just complement your home’s decor, but becomes a centerpiece that sparks conversations and memories. With its large glass viewing area, you can now enjoy the mesmerizing dance of flames while reveling in the knowledge that this insert is designed to make the most out of every log, minimizing waste and maximizing warmth.
Benefits:
- Efficient Heating: Experience efficient heat output that keeps your home warm even on the coldest days.
- Eco-Friendly: Burn wood sustainably, reducing your carbon footprint and contributing to a greener environment.
- Enhanced Ambiance: Enjoy the romantic ambiance of a real wood fire, perfect for cozy evenings and special moments.
- Cost-Effective: Cut down on heating costs by utilizing the Osburn Matrix’s heat efficiency and distribution.
- Easy Operation: User-friendly controls and hassle-free maintenance ensure a seamless experience.
- Customizable Style: Choose from various finishes to match your aesthetic and elevate your interior design.
- Reduced Energy Consumption: Supplement your home’s heating and reduce reliance on traditional heating methods.
- Safe and Secure: Equipped with safety features to ensure worry-free operation and peace of mind.
Features:
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20″ |
| Log positioning | Over width |
| Chimney diameter | 6″ |
| Flue outlet diameter | 6″ |
| Type of chimney | Liner – ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12′ |
| Baffle type | C-Cast |
| Approved for a mobile home installation | No |
| Shipping Weight | 484 lb. (220 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 19 5/8″ X 11 7/8″ |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 90 |
| Overall dimension (Height) | 25 1/8″ |
| Overall dimension (Width) | 36 1/8″ |
| Overall dimension (Depth) | 23 1/8″ |
| Door opening – dimension (Height) | 8 3/4″ |
| Door opening – dimension (Width) | 17 1/2″ |
| Firebox – dimension (Height) | 11 7/8″ |
| Firebox – dimension (Width) | 21″ |
| Firebox – dimension (Depth) | 16 3/4″ |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16″ |
| Steel thickness – top | 5/16″ |
| Fireplace opening – minimum (Height) | 23 5/16″ |
| Fireplace opening – minimum (Width) | 28 7/8″ |
| Fireplace opening – minimum (Depth) | 19 5/8″ |
| USA standard (emissions) | EPA / ASTM WK47329 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
| Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
| Canada | United-States | |
| Clearance – combustible side mantle to unit | 9″ | 9″ |
| Clearance – combustible top mantle to unit | 27″ | 27″ |
| Clearance – combustible side wall to unit | 16″ | 16″ |
| Clearance – minimum floor protection in front of the appliance | 18″ | 16″ |
| Clearance – top shelf to unit | 27″ | 27″ |
|
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites) |
||
Specifications:
|
BTU |
75,000 BTU |
|
Heating Capacity |
500-2,100 sq. ft. |
|
Firebox Size |
2.4 cu ft. |
|
Log Length |
up to 20” |
|
Flue Pipe Diameter |
6” |
|
Weight |
484 lbs. |
|
Width |
36 ⅛” |
|
Depth |
23 1/8” |
|
Height |
25 1/8” |
|
Minimum Opening-Width |
28 ⅞” |
|
Minimum Opening-Depth |
19 ⅝” |
|
Minimum Opening-Height |
23 ¾” |
Appliance Performance:
(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
(*) Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb./ft³ and 20 lb./ft³. Other performances are based on a fuel load prescribed by .the standard. The specified loading density varies between 7 lb./ft³ and 12 lb./ft³. The moisture content is between 19% and 25%.
(3) As measured per CSA B415.1-10 stack loss method.
(4) Higher Heating Value of the fuel.
(5) Lower Heating Value of the fuel.
(6) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(7) Optimum overall efficiency at a specific burn rate (LHV).
(8) This appliance is officially tested and certified by an independent agency.
(9) Carbon monoxide.
Downloads:
About The Manufacturer:

Osburn is a North American manufacturer of quality wood and pellet heating
appliances, that was founded in 1979. The company mainly specializes in wood stoves, pellet stoves, wood fireplaces, wood inserts, and their related accessories. Osburn is widely known for the high-efficiency and performance of its products, for those looking to replace their traditional fireplaces with more sophisticated wood and pellet heating systems for their homes. The company also stocks up on Osburn gas fireplace parts and maintenance products.
