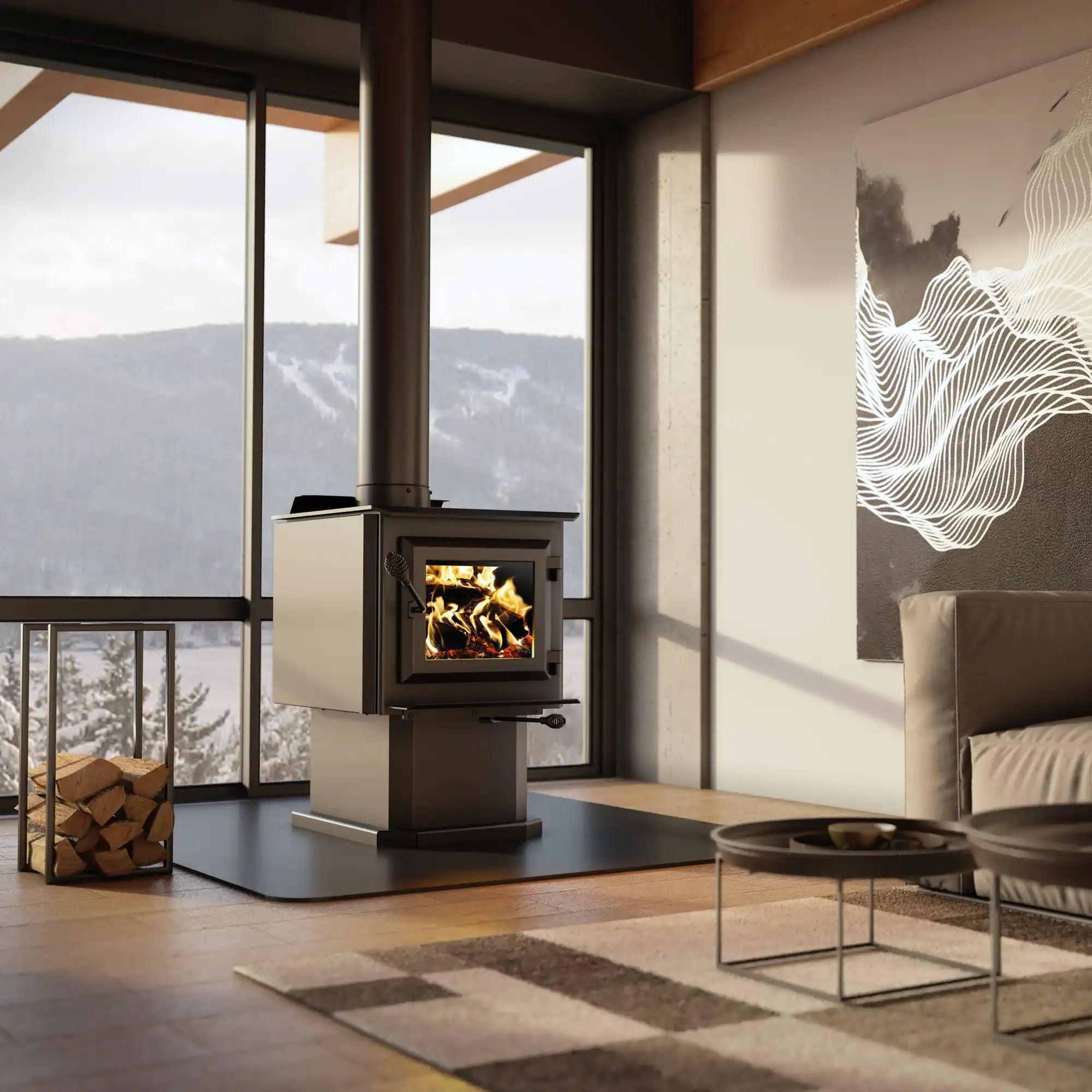

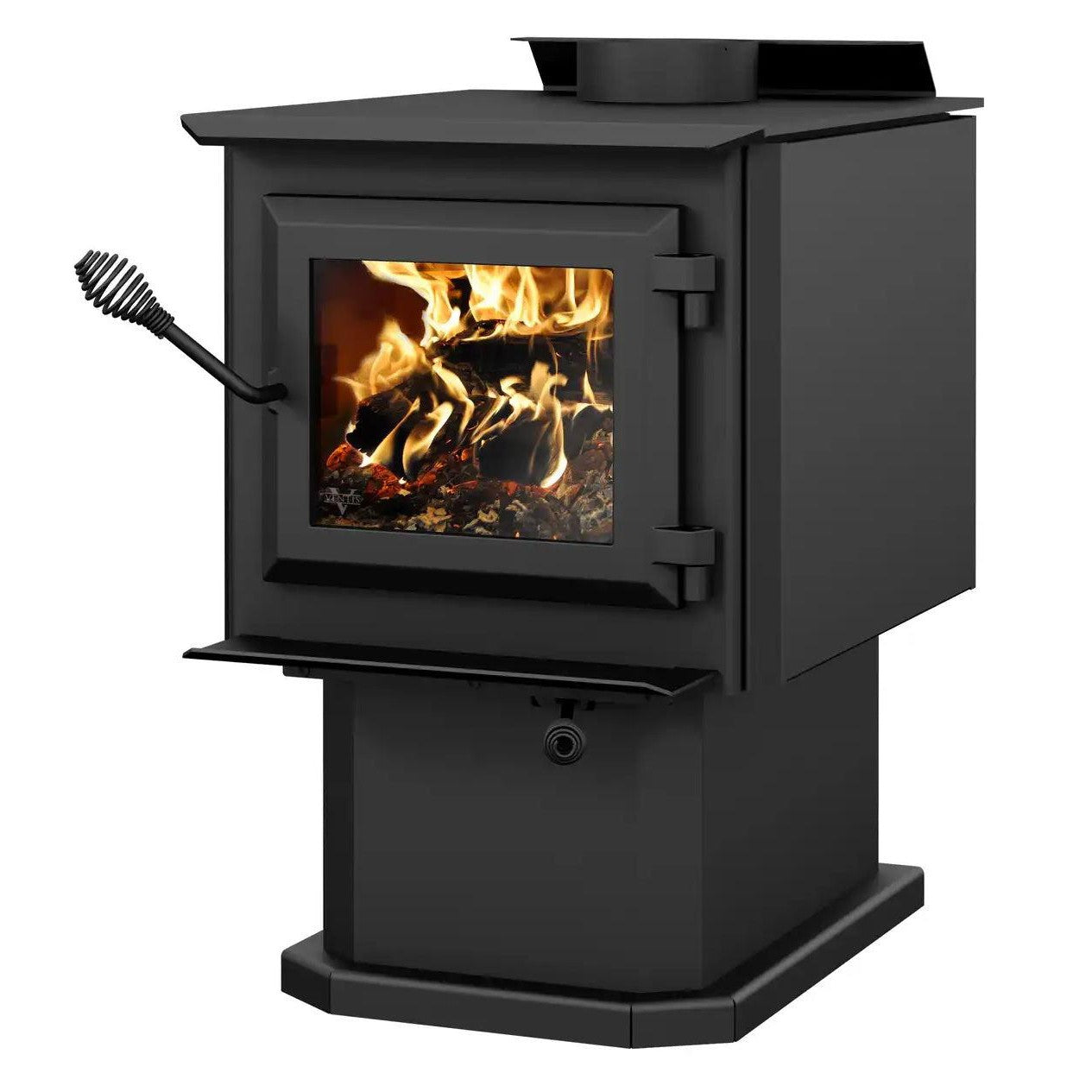

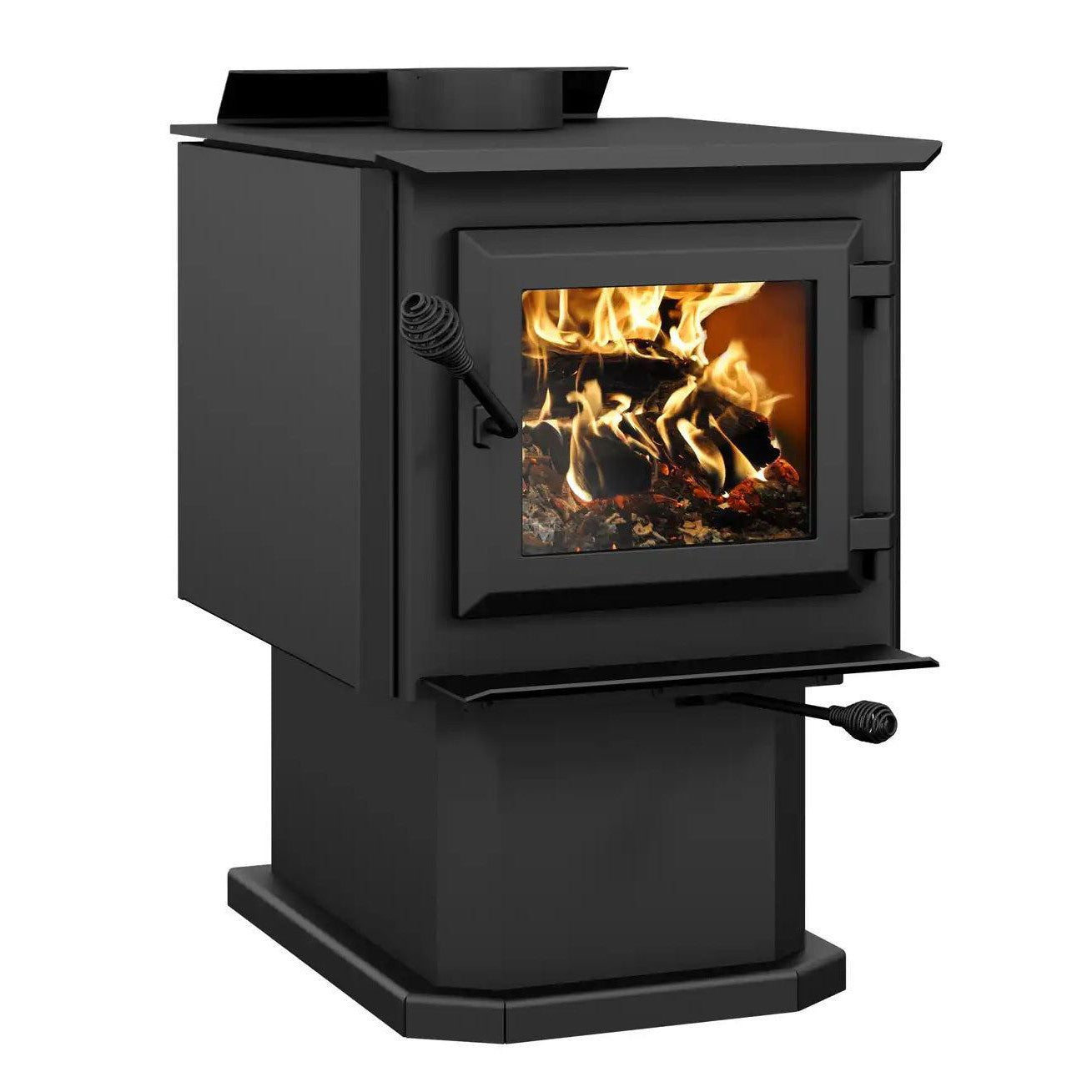

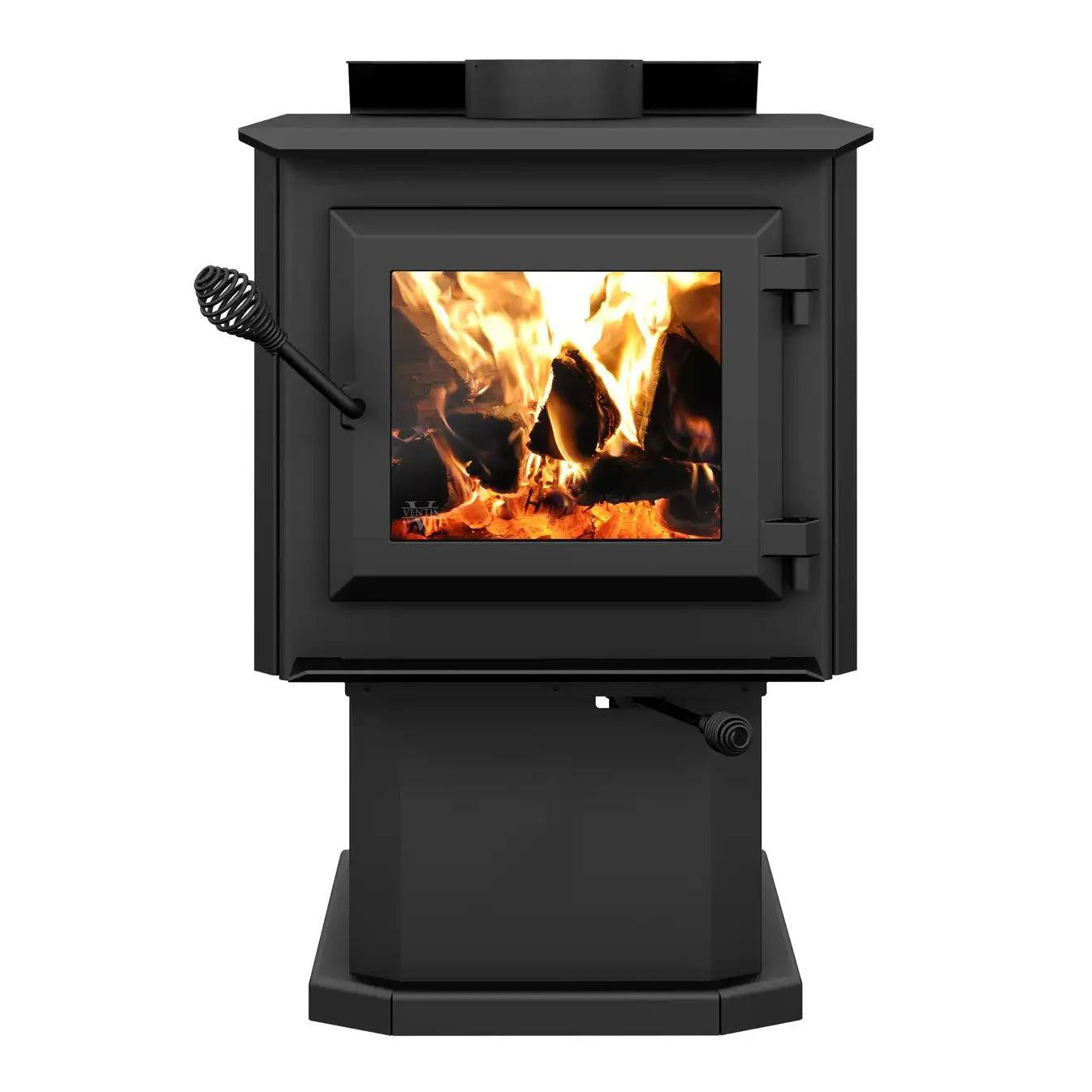

Ventis 20″ HES140 Small Black Wood Stove With Pedestal (30% Tax Credit Eligibility)

Sale

The Ventis 20″ HES140 Small Black Wood Stove with Pedestal is a compact yet powerful heating solution designed for homes ranging from 250 to 1,200 sq. ft. Delivering a maximum heat output of 45,000 BTU/h, this EPA 2020-certified stove ensures clean and efficient burning with low emissions of just 1.8 g/h. Its 1.8 ft³ firebox, lined with high-quality refractory bricks, retains heat for a longer duration, providing up to 5 hours of burn time. With an impressive efficiency rating of 74% (HHV) and a non-catalytic combustion system, the HES140 optimizes fuel use, making it an energy-efficient and eco-friendly choice for homeowners looking to reduce heating costs.

Designed for durability and performance, the HES140 features a sleek black steel body, a sturdy pedestal base, and a large ceramic glass window with a cast iron frame, offering a stunning view of the flames. The stainless-steel secondary-air system enhances combustion, ensuring consistent warmth throughout your space. Capable of accommodating logs up to 16 inches, this stove supports easy loading for hassle-free operation. The optional premium-quality blower helps distribute heat more effectively, while the high-efficiency vermiculite baffle system maximizes heat output. Additionally, this model is mobile home and alcove approved (with a fresh air intake), offering flexibility in installation and placement.

A key advantage of the Ventis HES140 is its eligibility for the 30% Federal Tax Credit, making it an excellent investment for energy-conscious homeowners. With a 6-inch flue outlet diameter and compatibility with ULC S629 and UL 103 HT (2100°F) chimneys, this wood stove ensures safe and reliable operation. Whether you’re looking to add warmth to a cabin, small home, or supplemental living space, the Ventis 20″ HES140 delivers efficiency, style, and cost savings, all in a compact, high-performance package.

What’s Included:

HES140 wood stove
Cast iron door
Top heat deflector and side panels

Not Included (Sold Separately):

Variable blower
Rigid firescreen
5″Ø fresh air intake kit

Features:

Small wood stove on pedestal
EPA certified at only 1.8 g/h
Solidity and manufacturing quality
Non-catalytic combustion technology
Installation authorized on the Island of Montreal
Cast iron door
Top heat deflector and side panels
Stainless steel heat shield added to the firestop

Specifications:

Appliance performance

Fuel type	Dry cordwood (16″ recommended)
Recommended heating area	250 – 1,200 ft²
Overall firebox volume	1.8 ft³
EPA loading volume	1.55 ft³
Maximum burn time	5 Hours
Maximum heat output-dry cordwood	45,000 BTU/h
Minimum overall heat output rate	12,124 BTU/h (3.55 kW)
Maximum overall heat output rate	26,700 BTU/h (7.83 kW)
Average efficiency-dry cordwood (HHV)	74 %
Average efficiency-dry cordwood (LHV)	79 %
Optimum efficiency	80 %
Optimum heat transfer efficiency	79 %
Average particulate emission rate	1.8 g/h
Average CO	74 g/h

General Features

Model	HES140
Ignition Type	Manual
Alcove installation approved	Yes
Mobile home approved	Yes, with fresh air intake
Premium quality blower included (CFM)	Optional
Certified according to applicable standards	CAN/USA accredited laboratory
Combustion technology	Non-catalytic
Stainless-steel secondary-air system	Yes
Flue outlet diameter	6″
Recommended chimney diameter	6″
Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height	12″
Door type	Single, glass with cast iron frame
Glass type	Ceramic glass
Glass surface – W x H	10 1/8″ x 8 1/4″
Steel thickness-body	3/16″
Steel thickness-top	5/16″
Maximum log length	17″
Log positioning	Loading over depth
Firebox lined with refractory bricks	Yes
Baffle type	High quality vermiculite
High-efficiency certified appliance	Yes, EPA 2020 certified
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA
Canadian Standard (safety)	ULC S627
USA Standard (safety)	UL 1482, UL 737
Shipping weight	282 lb (128 kg)

Dimensions:

Overall Dimensions

Overall dimension (Width)	20″
Overall dimension (Height)	30″
Overall dimension (Depth)	29″

Firebox Size

Firebox size (Width)	14″
Firebox size (Height)	12″
Firebox size (Depth)	19″

Door Opening Size

Door opening size (Width)	12″
Door opening size (Height)	8″

Warranty:

Description	Parts	Labour
Combustion chamber (welds only), castings and convector air-mate	Lifetime**	4 years
Plating* (defective manufacture) – subject to limitations above Ceramic glass (thermal breakage only*)	Lifetime**	N/A
Stainless steel firebox components, vermiculite, C-Cast or equivalent baffle* and secondary air tubes*, glass retainers and handle assembly	5 years**	3 years
Surrounds and heat shields, ash drawer, steel legs, pedestal and trim (aluminum extrusions)	5 years	N/A
Carbon steel firebox components	3 years	2 years
Blowers, heat sensors, switches, rheostat, wiring and electronics	2 years	1 year
Paint (peeling), gaskets, insulations, refractory bricks (fireplace only*) and ceramic fibre blankets	1 year	N/A
All parts replaced under the warranty	90 days	N/A

Documents & Files:

30% Tax Credit Program:

This Wood Stove is Eligible for the 30% Tax Credit Program

✅76% HHV Efficiency

Beginning in 2023 through December 31, 2032, consumers buying highly efficient wood or pellet stoves or larger residential biomass heating systems may be eligible to claim a 30% tax credit that is capped at $2,000 annually and is based on the full cost (purchase and installation) of the unit.
This new 30 percent tax credit is available for appliances installed between January 1, 2023, and December 31, 2032.
Customers will claim their tax credit when they file their taxes on IRS form 5695 under “Residential Energy Efficient Property Credit “. They will need their purchase receipt (showing the cost of the product and installation).
Customers will also need the manufacturer certificate stating that the stove qualifies for the credit and is at least 75 percent efficient HHV.
The credit applies to qualifying wood and pellet stoves and, unfortunately, not to gas stoves.
People who have zero tax liability may not qualify for the tax credit. It’s recommended to consult a qualified tax professional to determine if the customer is eligible to take advantage of this tax credit.

About The Manufacturer:

All Ventis appliances are non-catalytic and easy to use. Certified to the highest environmental standards, our heaters are among the cleanest in the industry. Our limited lifetime warranty testifies to the robustness of our products and allows you to choose Ventis with confidence. Choose an optimized design and superior materials: precise finishing, powder painting, etc. Backed by a limited lifetime warranty, our pipes and chimneys are a charm to install!
